STAGE 3 - Ohlins Front & Rear COMPLETE Suspension Kit - Honda Monkey ** ON SALE **
instock
About STAGE 3 - Ohlins Front & Rear COMPLETE Suspension Kit - Honda Monkey ** ON SALE **
STAGE 3 - Ohlins Front & Rear COMPLETE Suspension Kit - Honda Monkey ** ON SALE **

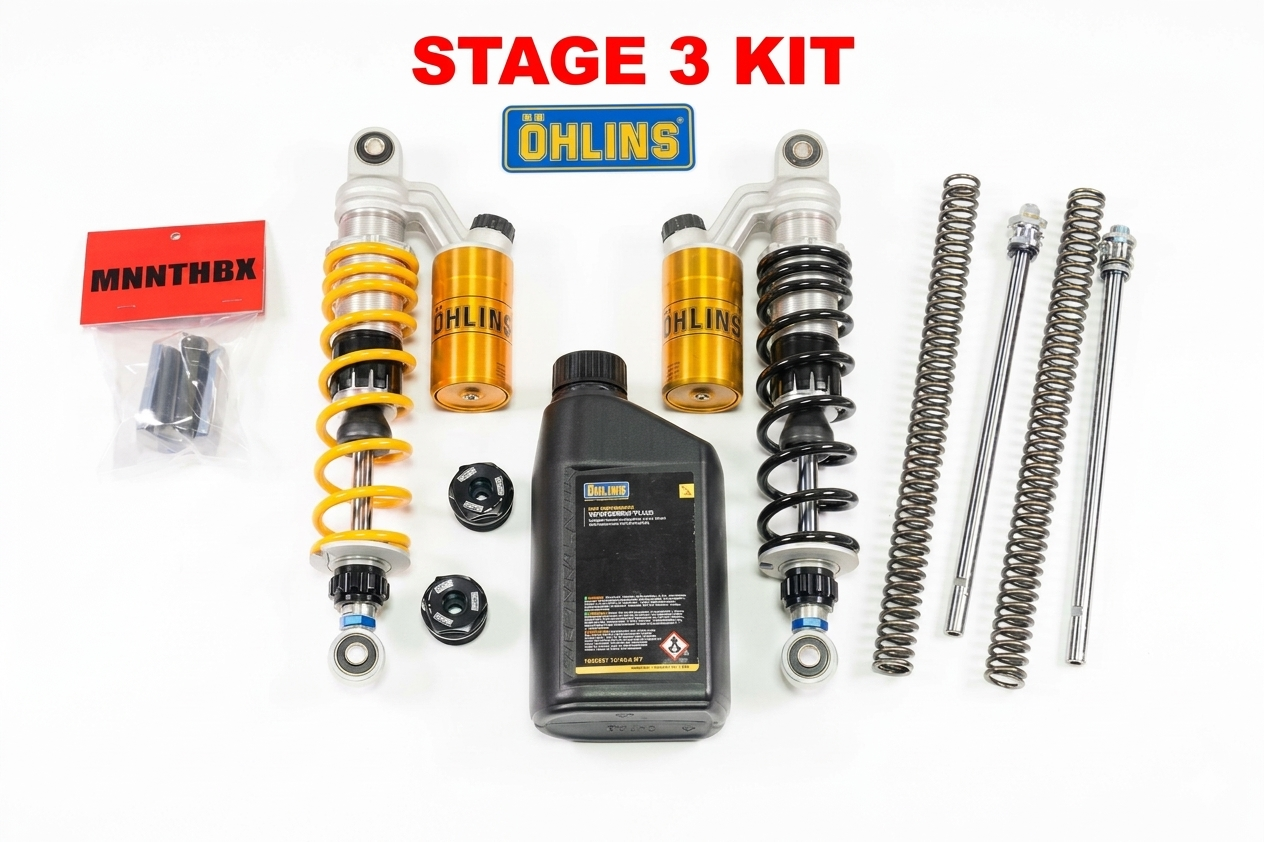

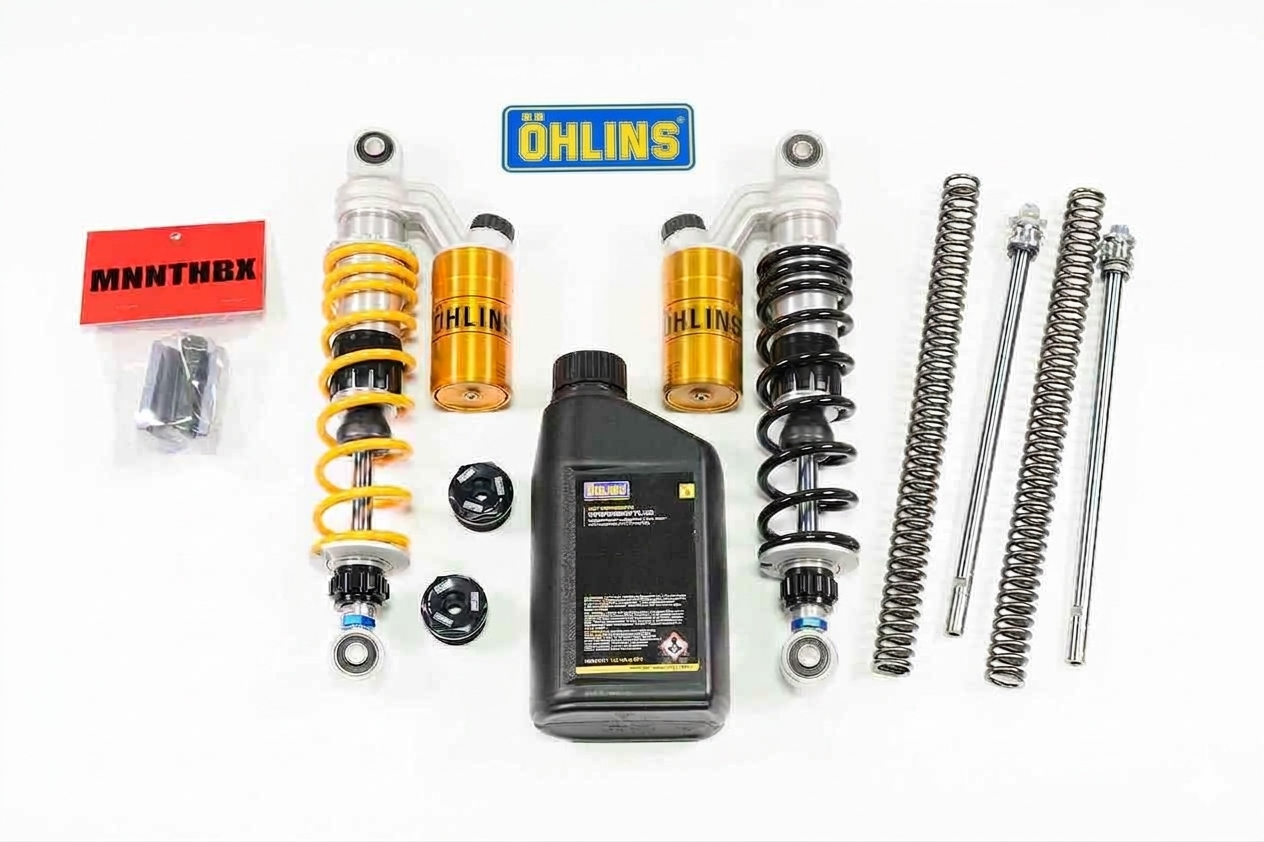

If you want to go all out on the best suspension available & save a bunch of money for your Honda Monkey, then look no further. We have bundled the highest quality parts together for you with everything that you would need to completely change the way your Honda Monkey rides & handles. The complete STAGE 3 kits comes with Ohlins HO819 shocks with reservoirs, Ohlins front fork kit, Ohlins fork oil & the MNNTHBX fork install tool. The rear shocks and front fork kit comes with 2 sets of springs for riders under 176lbs and for riders over 176lbs. The Ohlins HO819 rear shock springs are availabe in either yellow or black. MNNTHBX is the only place to get the Ohlins rear shock springs in glossy black.

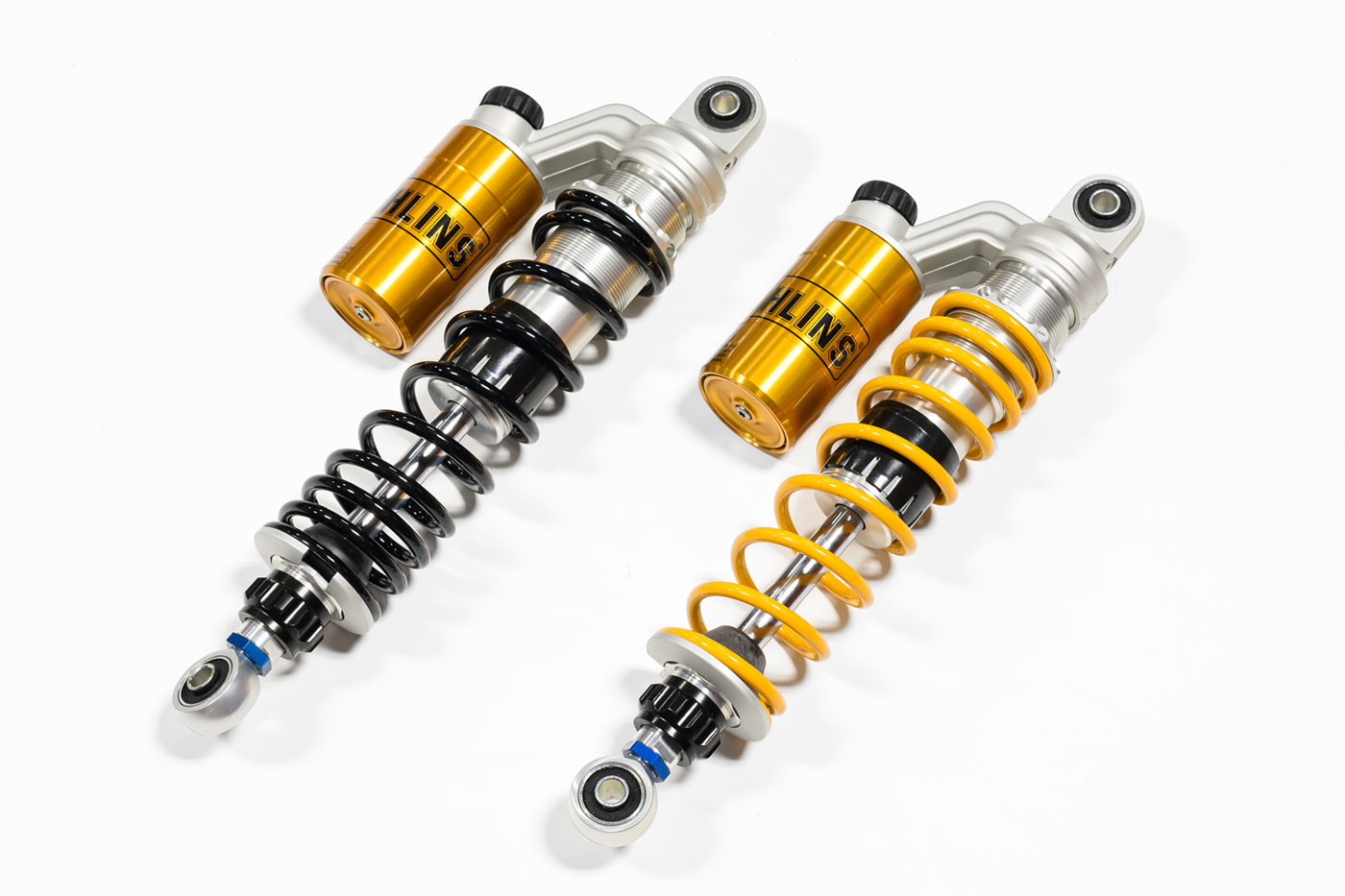

- Rear Shocks Features:
- Built by the same machines and hands as the highest level Ohlins racing shocks.
- Monotube design.
- 36mm piston.
- Built-it adjustable preload.
- Hard anodized
- Nitrogen charged
- Precision CNC-machined components
- Low-friction piston rod
- Low-friction eyelets
- Multiple spring rates available to accommodate a wide range of riders
- Serviceable and repairable
- Front Fork Kit Features:
- Two-way adjustable (compression and rebound)
- Improvement in front end suspension feel and performance
- Reduced suspension bottoming
- Precision CNC-machined components
- Hard anodized
- Performance rate springs
- Serviceable and repairable
1 review for STAGE 3 – Ohlins Front & Rear COMPLETE Suspension Kit – Honda Monkey ** ON SALE **
Victor Zarich (verified owner) –
I own a 2025 Monkey. I weigh 250 lbs. and found the stock suspension on the Monkey way too soft and at times found it to be unstable under certain circumstances. I installed the “STAGE 3 – Ohlins Front & Rear COMPLETE Suspension Kit – Honda Monkey ** ON SALE **”. I find that it made a tremendous difference in the ride comfort and stability of the motorcycle. After installation I found that the suspension had none of the instability that I had experienced prior with the stock suspension. I am very pleased with the product and believe it to be a necessary upgrade for safety purposes. The suspension is far more controlled and positive with this kit installed. It’s a lot of money, but worth the investment. The rear springs as adjusted when I received the kit were way too stiff, I had to back them off some for a more comfortable ride. I find that these rear shocks and springs support me well and I’m sure that they would do fine for someone up to about 300 lbs.
There are two criticisms that I have with the product installation:
1. The heavy and lighter duty springs for both the front and rear of the bike are not well labeled in the box, thus leaving some ambiguity. They should be well labeled. It should not be very hard to do something like this.
2. The kit requires the reuse of some plastic rings from the stock piston assemblies. It is necessary to install them oriented in different ways depending on whether you are installing the compression, or rebound valve assemblies. It is not clear as to the orientation of the rings in the instructions. This is a critical part of the installation which needs to be gone into in much greater detail in the manufacture installation instructions.
Perhaps MNNTHBX or Ohlin could put out a video clarifying these details.
